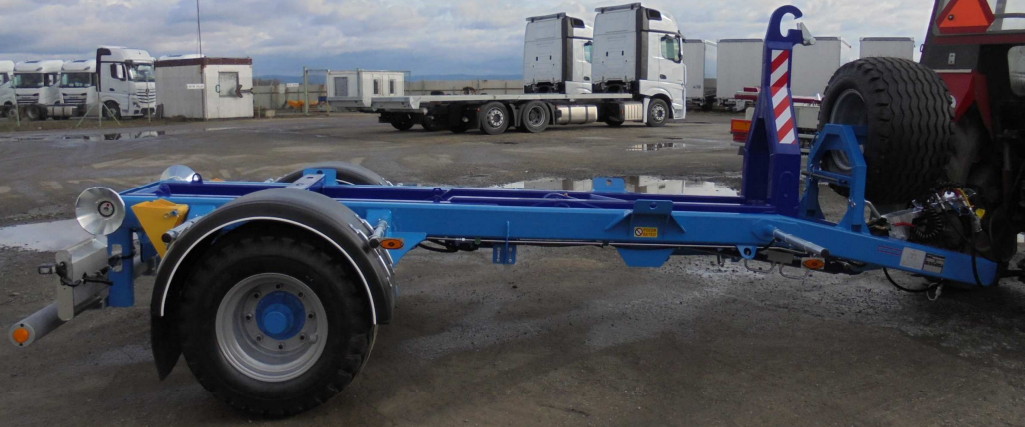

Tractor container carrier with hook-joint mechanism ZHK09

Technical parameters - CHASSIS

Basic frame
Steel welded from closed profiles
Permissible / operational weight
9 500 kg / 1 700 kg
Carrying capacity
7 800 kg
Design speed
40 km/h
Axle / number of persons
Spring loaded with leaf springs / 1
Overall length / width / height
5 504 mm / 2 356 mm / 2 030 mm
Brakes
WABCO / HALDEX dual hose system, automatic parking brake, automatic load regulator
Towing eye: height from the ground / diameter-fixed
500 mm / 40 mm
Drawbar load max. load / max. drawbar load when stretching
↓ 1 400 kg / ↑ 1 500 kg
Drawbar support
Mechanically extendable and foldable
Tires
19.0/45 - 17 diagonal
Electrical installation
12V, LED lighting

Technical parameters - CONTAINER CARRIER

Carrier construction
Steel welded from closed profiles
Roll width
1 060 mm
Roll height
875 mm
Hook height
1 000 mm
Container length min / max
3 800 mm - 4 200 mm
Drive and control
2 x tractor hydraulics circuit, automatic switching between container stretching and folding
Volume of oil required for aggregation
9 L
Work pressure
20 MPa Max
Max. carrier performance
7 500 kg
Securing the container
Hydraulic
Tilting of the container when extending / folding
29º/35º / 47º

Note

Note
AVAILABLE FROM FEBRUARY 2024

Complete specifications and price on request
