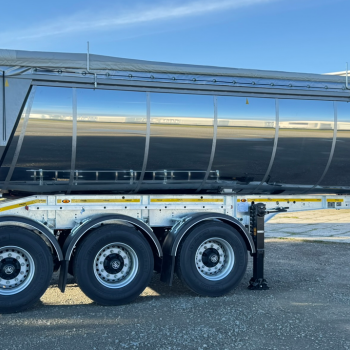

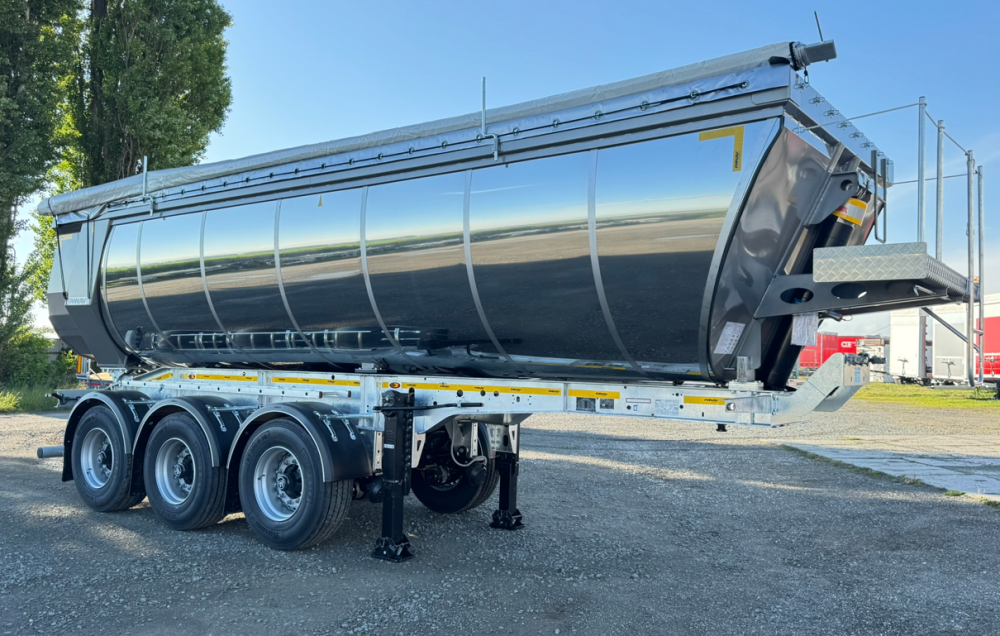

Body

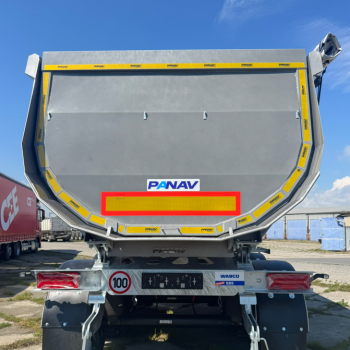

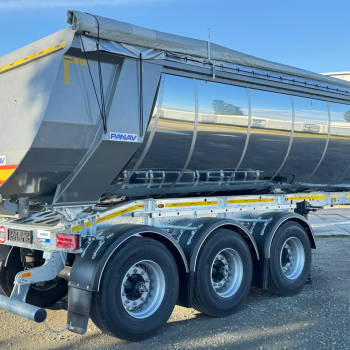

All-metal trough body, swinging tailgate, floor 5 mm HARDOX, sides 4 mm HARDOX, tarpaulin to side with servis footbridge, 1x truss + 2x tensioning chains

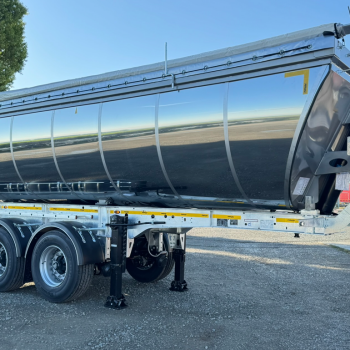

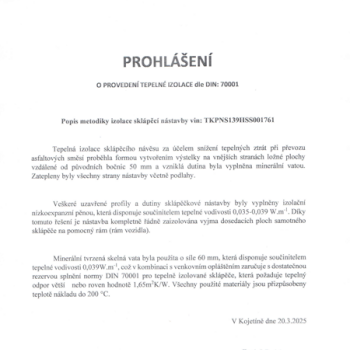

Insulation according to standard DIN 70001, complete thermal insulation - mineral wool 30 kg/m3, thickness of at least 50 mm according to the standard (front and rear face = 50 mm, sides and floor = 70 mm), surface - stainless steel 0,8 mm
Frame

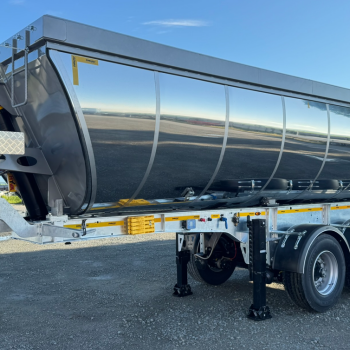

Steel, hot-dip galvanized, replaceable JOST 2 suspension pin, two-speed support JOST legs, plastic mudguards with rubber aprons + antispray
Chassis

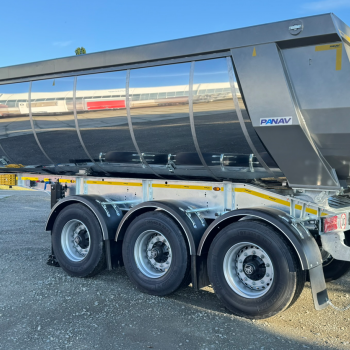

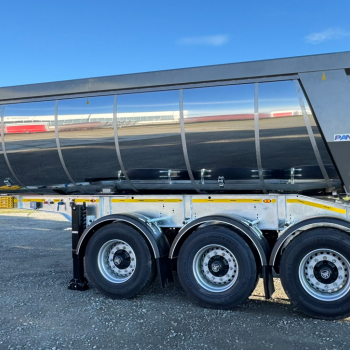

Air-suspended BPW axle aggregates, disc brake ø 430 mm, 1st and 3rd lifting axles (1x valve) - automatic lifting + from smartboard, emptying of bags when tipping, blocking of axle lift when tipping
Tires
6 tires 385/65 R 22,5 BARUM BT 300 R HL
Brake connection
2 pcs of coupling heads (filling and control)
El. connection
Electric socket 1 x 15 poles
Hydraulics
Seamless hydraulic lifter, single hose system with operating pressure 16 Mpa
Installation
Two-hose air-pressure brake equipped with an automatic load regulator, parking and emergency brake with spring cylinders, electronic measurement of axle pressures with readout of the current vehicle load on the trailer display, smartboard, tire pressure monitoring - WABCO "OPTITIRE" - internal sensors
