Technical parameters
Technical / permitted weight
39 000 / 39 000 kg
The load on the fifth wheel
15 000 kg
Axle load
3 x 9 000 / 9 000 kg
Turntable height
1 150 mm
Specifications
Frame
Steel, hot-dip galvanized, front parking feet, replaceable JOST 2" suspension pin, 8 pairs of lashing strap holders, 2x rear rescue hook, aluminum rear bumper, aluminum side guards, covered space between the side members plastic fenders + antispray
Tires

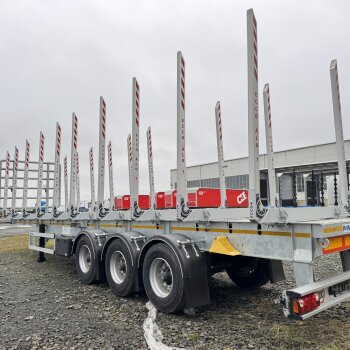

6 pcs of tires 385/65 R 22.5" Barum
Brake connection
2 pcs of coupling heads (filling and control)
Chassis
BPW air-suspended axle units, 22,5" - automatically, parking brake with spring cylinders
El. connection
Electric socket 2 x 7 + 1 x 15 poles
Installation
Service and emergency two-hose air-pressure brake equipped with an automatic load regulator brand Wabco according to EHK 13.11, without smartboard, electrical installation with screwless connections, installation without terminal blocks with ASS3 quick connectors
Stanchions

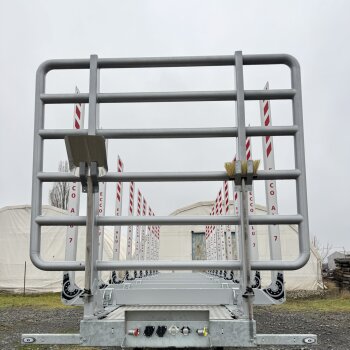

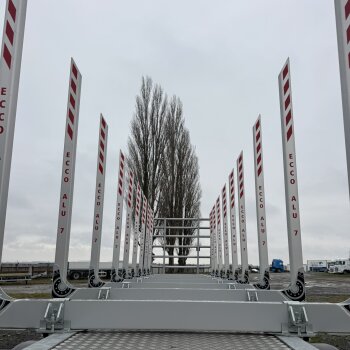

10 x ECCO - Kombi D7 (steel + aluminum), protective front face of tubular construction on the front part of the frame, shovel and broom on the front face
COMPLETE SPECIFICATIONS AND PRICE ON REQUEST
